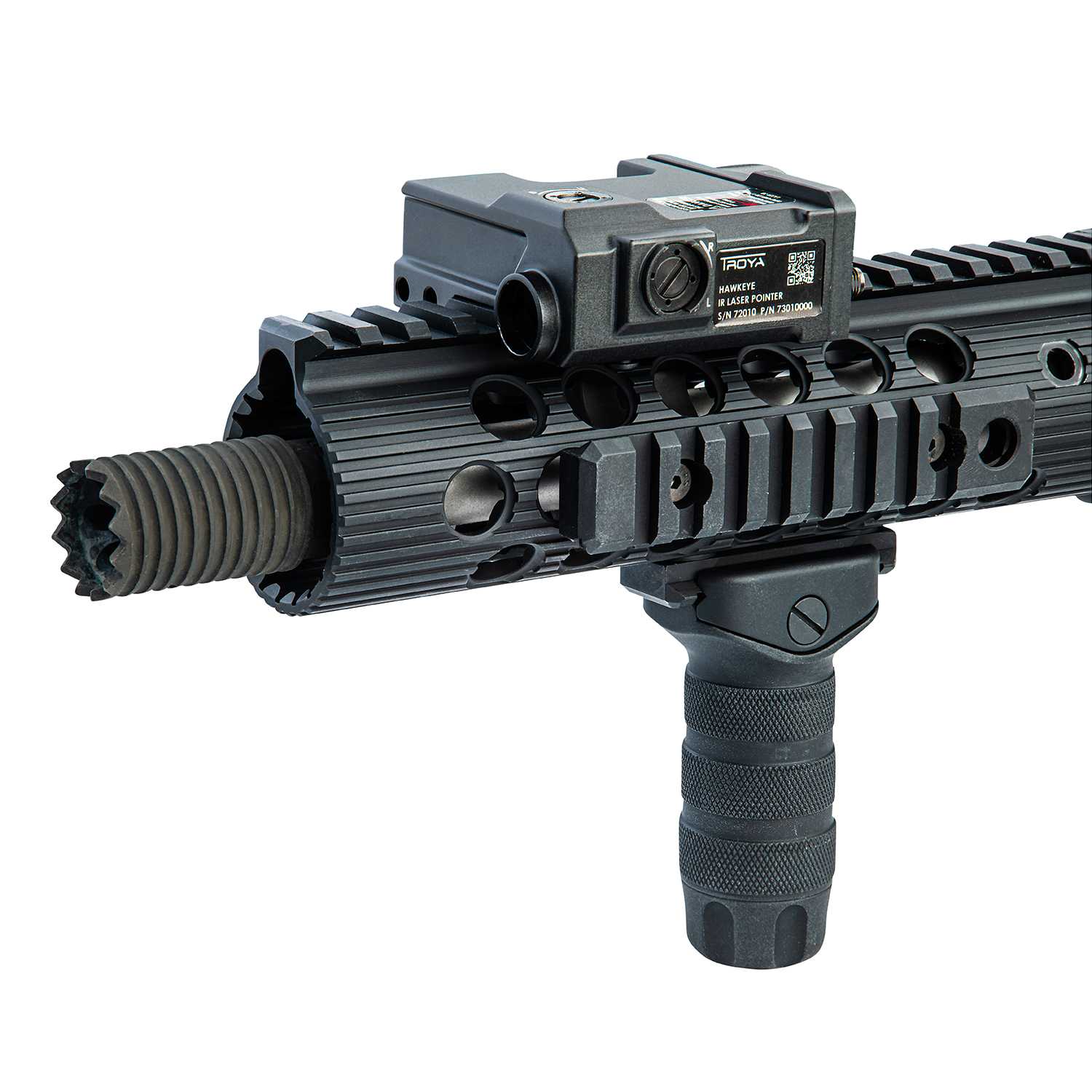

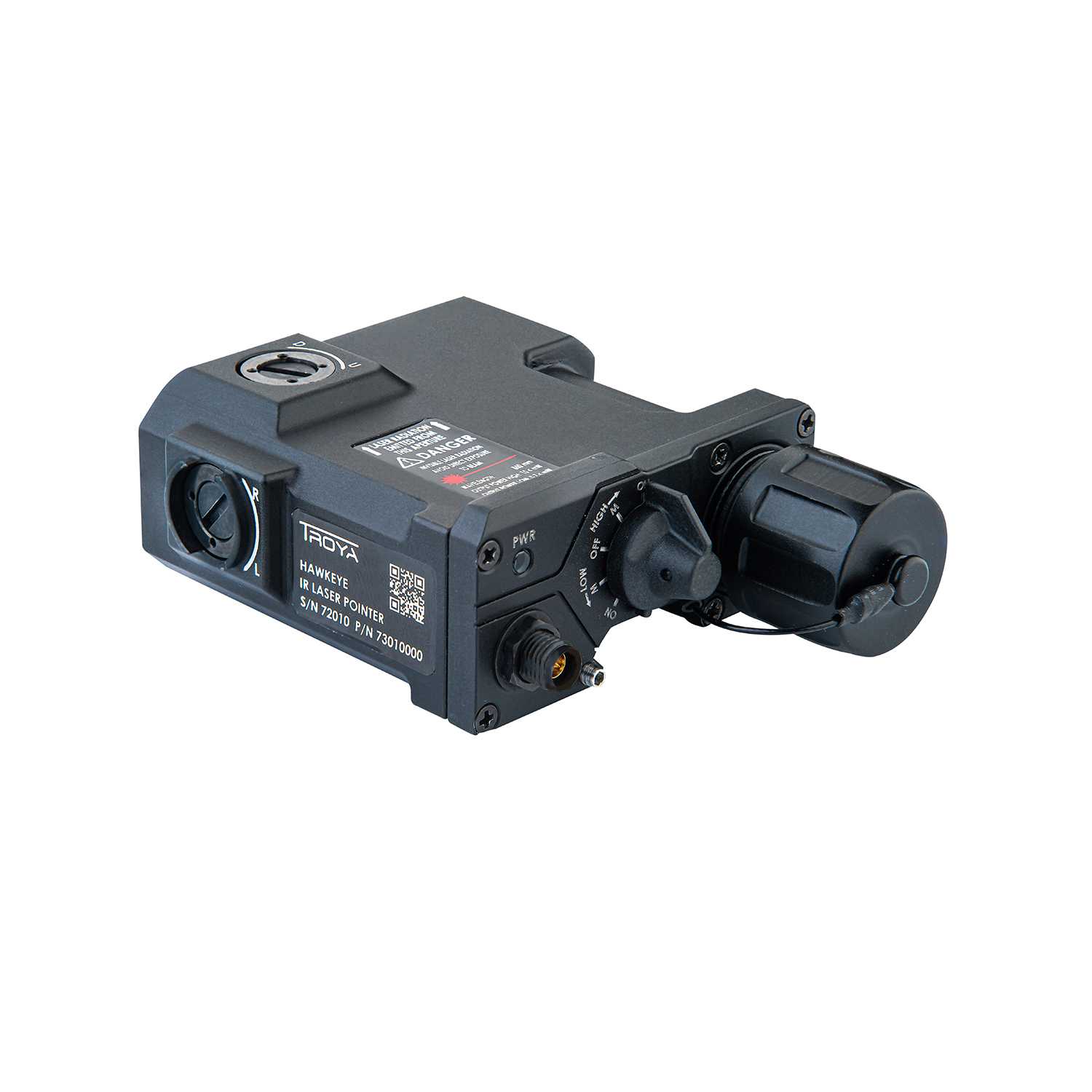

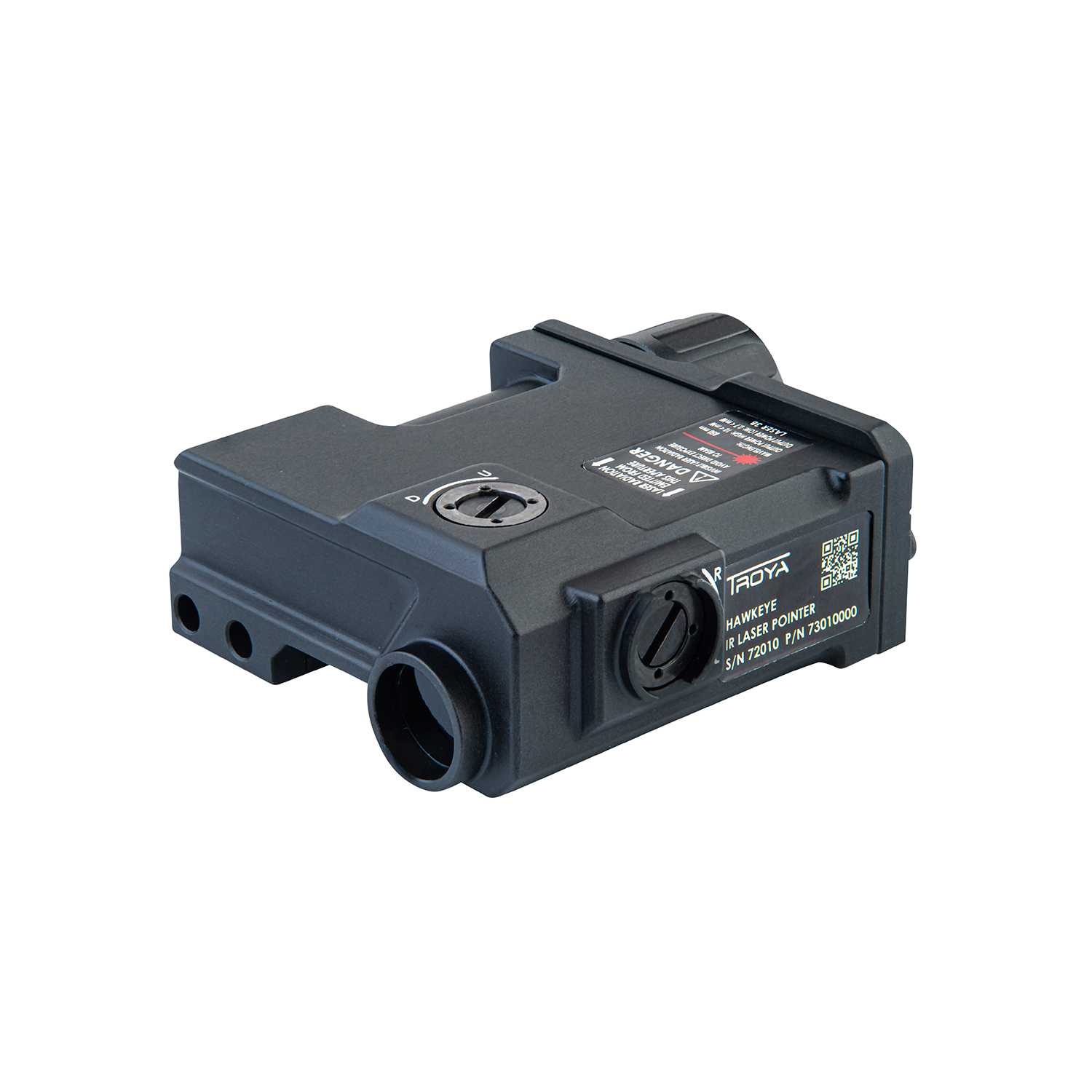

Hawkeye Laser Designator

TROYA’s HAWKEYE is a very lightweight laser pointer and illuminator. The HAWKEYE is offered with either visible or Infra Red (IR) diode, according to the customer’s requirements and operative nature. The HAWKEYE is designed to be compatible with any rugged terrain or difficult scenario its user will face in the field, with very simple, ergonomic and intuitive operational features. The HAWKEYE makes for accurate aiming, target acquisition and marking, ground-to-ground and ground-to-air signaling and much more. The HAWKEYE is fitted for use with standard Night Vision Devices, and standard mounting platforms.

More Details

Download PDF

Laser Type

IR

Power Output - Low | High

<0.7mW | 10mW

Wavelength

850+5nm

Laser Class

Class I - Low | Class IIIB - High

Beam Divergence

0.2 mrad

Beam Size (@10m)

⌀5.0mm

Windage and Elevation Adjustment

1 MOA

Working Temperature

-20°C to +50°C

Storage Temperature

-40°C to +72°C

Battery

1 X AA 1.5V

Continous Working Time

>10 hours

Waterproof

5m

Switch

Off/ On/ Remote Control Momentary Switch

Mount

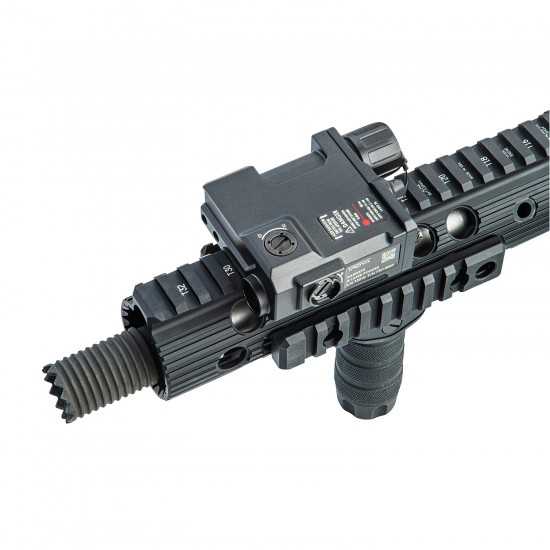

Integrated, low profile Picatinny adaptor, in front of scopes,  holographic sights or NV sights



Standard Accessories Include:

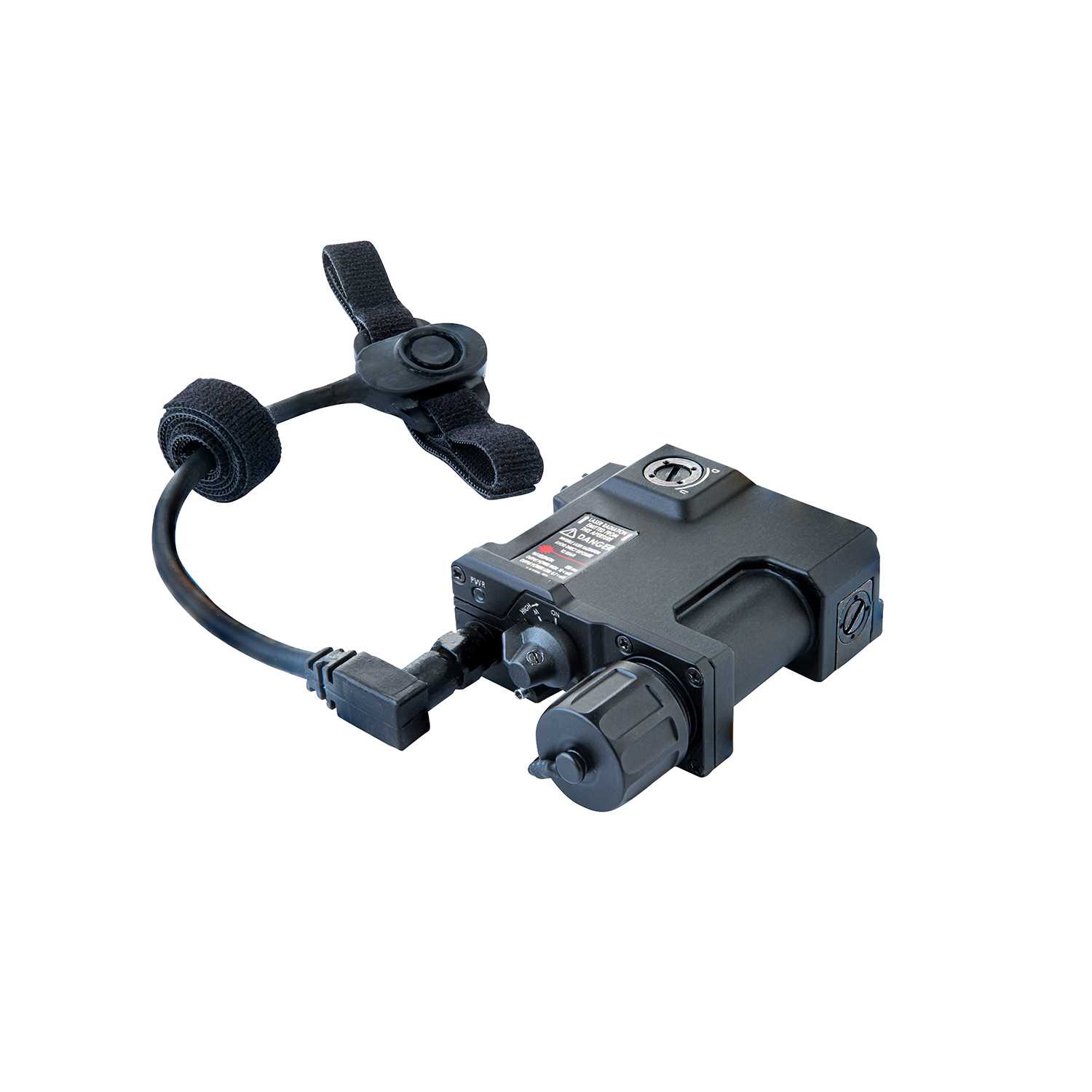

  • Remote Momentary Switch Cable
  • Microfiber Cleaning Cloth
  • User Manual
  • Carrying Case
  • Lens Cover
